Indicated for chronic and progressive conditions, LB is a highly modular pediatric wheelchair with an innovative structure extensively configurable and, customizable.

Is possible, in fact, attach the best-known static and dynamic posture systems, it can accommodate various accessories and finally it can be enriched with further customization ad hoc. It satisfy, therefore, all the needs and follows the evolution of the diseases.

Download brochure

Description

LB is easy to clean, thanks to the use of Buddy Brace products, with the breathable and washable seating systems with removable highly finished cover.
It is possible also to equip the LB wheelchair with a another wide range of products Buddy Brace: the seating systems, which allow a natural fit of the body shape ensuring high levels of personalization and comfort.
The original structure of the wheelchair, not surprisingly, comes from an in-depth study that finds its origins in the aviation sector, where everything must be strictly safe, comfortable, ergonomic, lightweight and interchangeable over the years: with this logic ensures spare parts always available, easy to replace and of low cost.

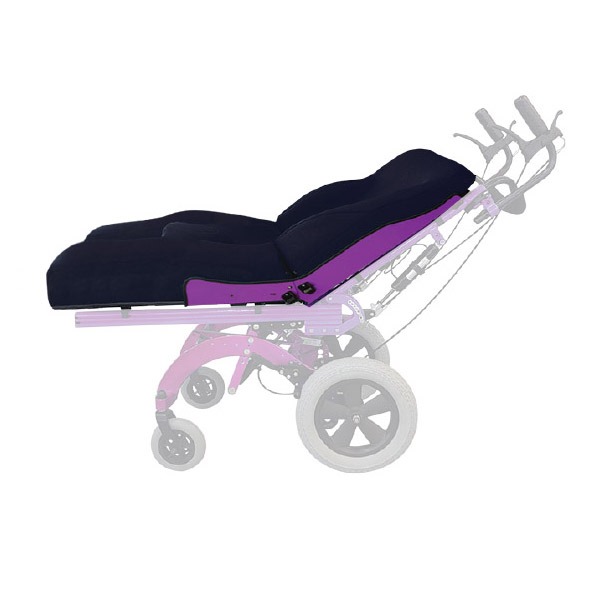

The user body detected (back, pelvis, arms, head, complete in the stretcher) is reproduced in negative and adapted directly to the wheelchair aluminum frame. One to One Buddy Brace, differs from the competitors especially for the meticulous personalization.

Clinical description

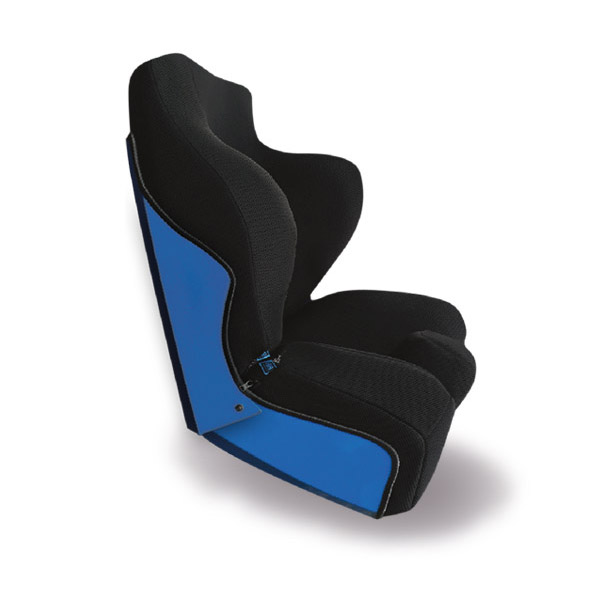

The Postural System contains, controlles and correctes, where possible, incorrect postural attitudes determined by neuro / motor pathologies that generate deformities in the trunk / pelvis segment. The Posture System is a valid solution also for all the pathologies of the central nervous system, such as Infantile Cerebral Palsy (PCI) and Spinal Muscular Atrophy (SMA). The mold of the user is digitized by our BB Scanset scanner (on the market), then there is the design phase and the realization of the product, hand-coated by excellent craftsmen that guarantee perfect ergonomics. The cover of all CLOUD products is customizable, breathable, removable and comfortable.

Technical data

Total length with legrests   1020 – 1180 mm

Total width with wheels   395 – 645 mm

Total width with armrests   375 – 635 mm

L/W/H minimum transport length   780x330x665 mm

Seat height   415 – 515 mm

Total weight   min 22 – max 32 kg

Maximum user weight   max 150 kg

Seat width   260 – 480 mm

Seat depth   260 – 660 mm

Backrest width   260 – 480 mm

Backrest height   450 – 550 mm

Backrest angle-adjustable   90° – 135°

Legrest angle-adjustable   90° – 170°

Crashtested (ISO 7176 – 19/  yes

Warranty   2 years

CE EN12182/EN12184   yes

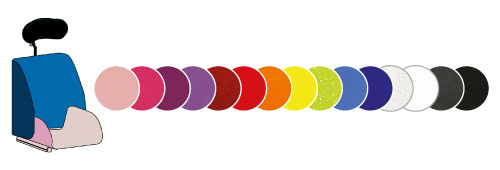

Avaiable colours

Example of customization
